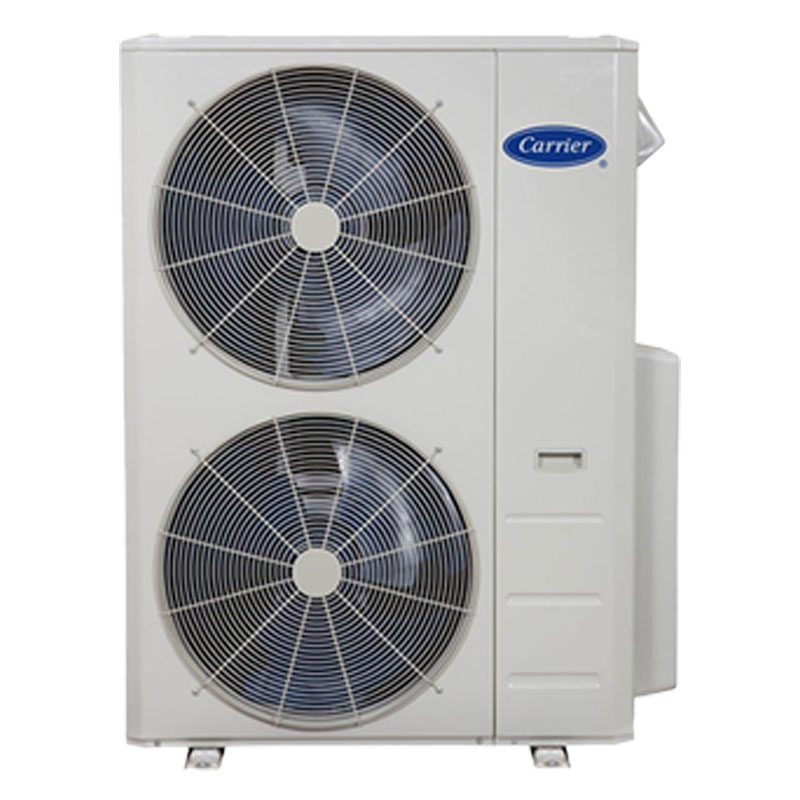

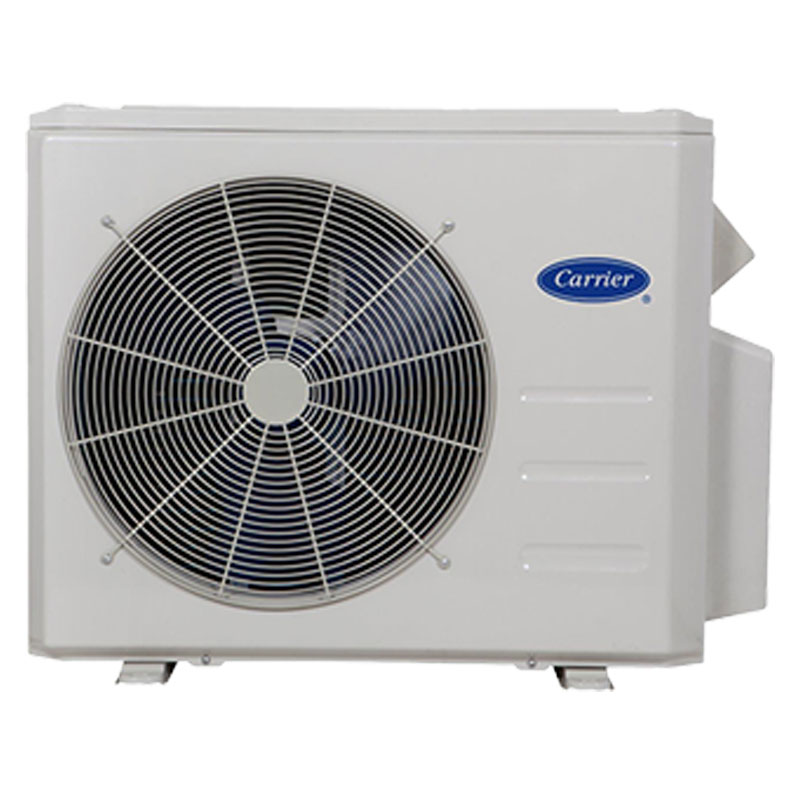

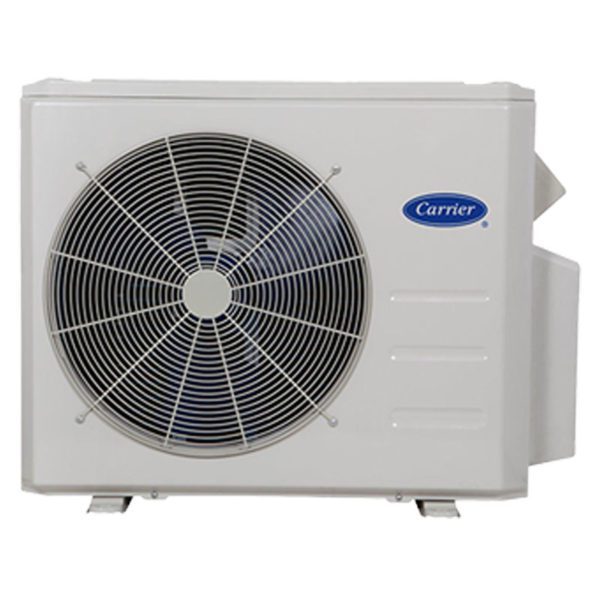

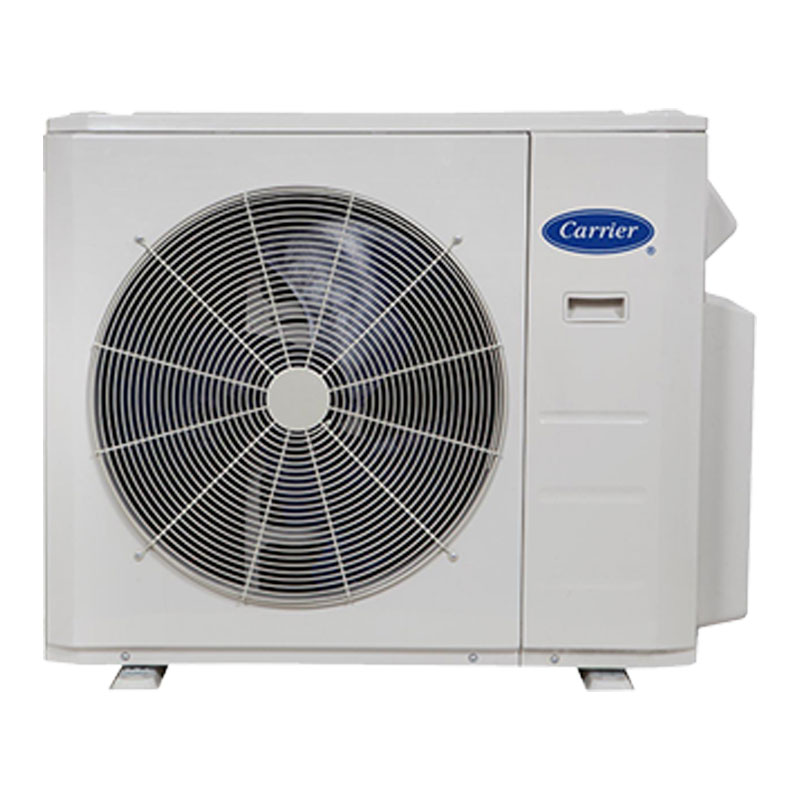

PERFORMANCE™ MULTI-ZONE HEAT PUMP WITH BASEPAN HEATER 38MGR
If you happen to live in a home without ductwork or have a converted area for a living/working space, you’ll appreciate this multi-zone heat pump. The MGR System can provide year-round comfort, cooling for those hot summer days and warmth the rest of the year, even when temperature dips down to 5° F at full heating capacity (with the right size and system combination).
As a multi-zone, you can use up to five multiple style indoor units supported by just this one efficient, outdoor Inverter compressor unit. For quiet comfort in a multi-space application, it can’t be beat.
- 100% Heating Capacity at 5° F (-15° C) (Sizes 24 to 36)
- Inverter Compressor
- Up to 23.8 SEER cooling efficiency
- Up to 10.5 HSPF heating efficiency
- Sizes: 18 / 24 / 30 /36 / 48
- Available in 208/230V
- Built-in Basepan Heater
- Connects two to five multiple style indoor units (Performance™) off a single outdoor unit
- Condenser high temperature protection
- Refrigerant leakage detection
- Quiet outdoor sound operation, as low as 62 decibels
- Total piping length 131 ~ 328 ft. (40 ~ 100 m) depending on unit capacity
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
EFFICIENCY
- Up to 23.8 SEER
- Up to 13.5 EER
- Up to 10.5 HSPF
- Select systems are ENERGY STAR® certified based on indoor unit combinations
PERFORMANCE
- Outdoor sound: as low as 62 decibels
OUTDOOR OPERATING RANGE
- Cooling mode Min-Max DB: -13° ~ 122° F (-25° ~ 50° C)
- Heating mode Min-Max DB: -22° ~ 86° F (-30° ~ 30° C)
LINE LENGTH
- Up to 131 ~ 328 ft. (40 ~ 100 m)
TECHNOLOGY
- Inverter Compressor
CAPACITIES
- 1.5 ~ 4 tons
REQUIREMENTS
- 0.75 – 1 ton 115V
- 208/230V
AESTHETICS
- Heavy-gauge, galvanized steel construction
- Primed and coated with a 100% coverage, baked-enamel finish in white
